Landfills

PVC pipes threaded and micro-slotted for drainage

2024-07-01T15:09:36+02:00

PVC pipes threaded and micro-slotted for drainage

PVC pipes, made by System Group PVC, have the double function of collecting excess water in the soil and conveying it in a drain line,in order to ensure the safety of environments in the vicinity of natural or artificial slopes. It has been proven for years, that the use of a product with the slots adequately adjusted to the ground particle size, guarantees a long draining effectiveness over time. The sub-horizontal drainage pipes can also be used for road drains, agricultural, railway, airport, construction and public green.

MICRO-SLOTTED BARS WITH SOCKET

BARS WITH DRAIN FILTER SOCK

YOU-TUBE

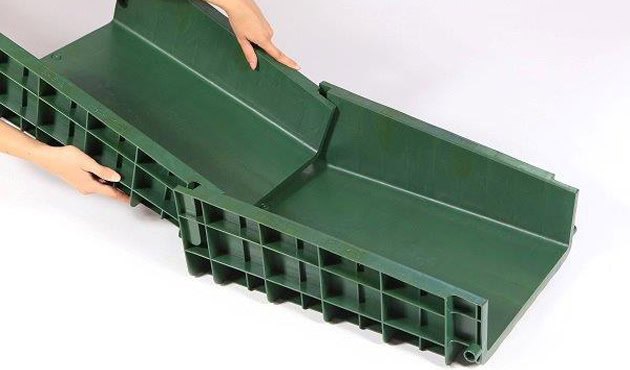

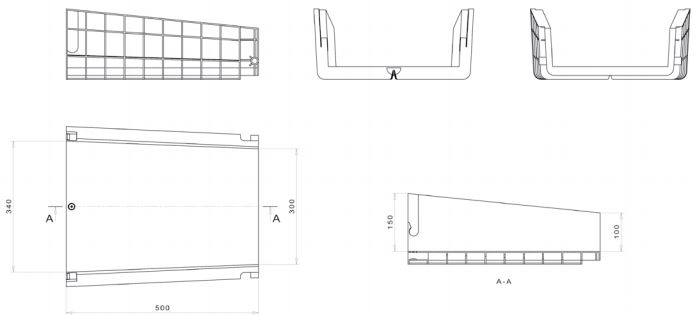

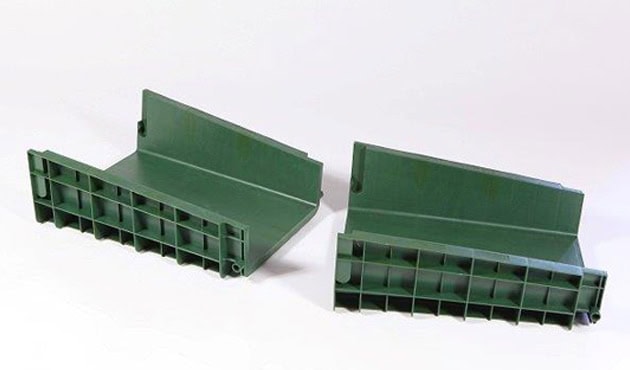

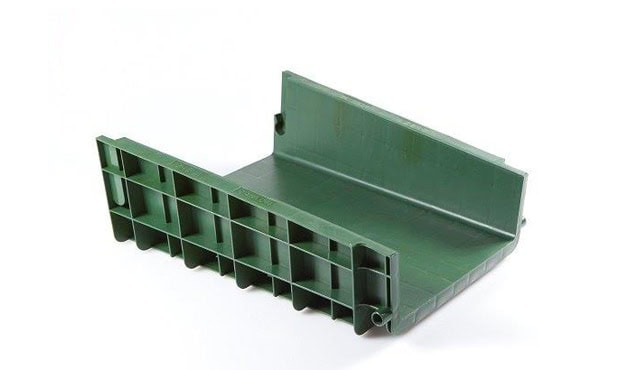

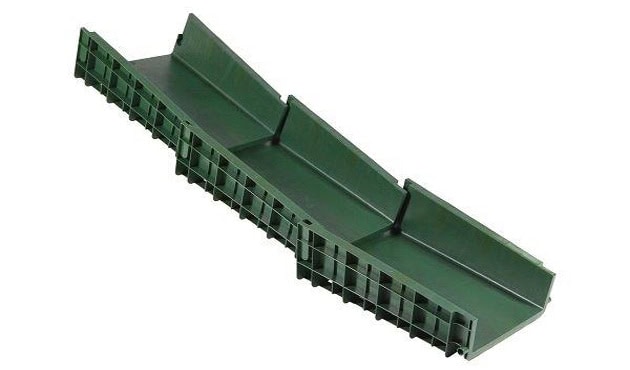

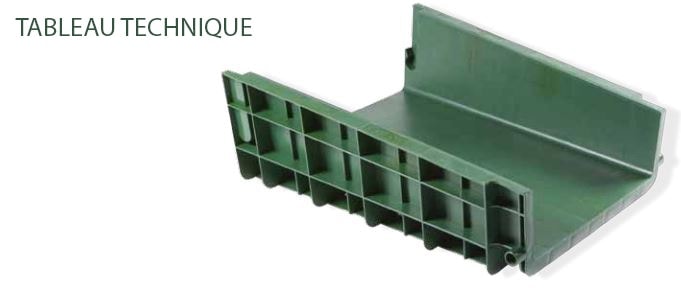

CANYON – PE DRAINAGE CHANNELS FOR ROADS AND RAILWAYS RUN-OFF

2023-03-29T11:41:18+02:00

EMBRICE IN PE CANYON PER SCARPATE STRADALI

BRIEF DESCRIPTION

Polyethylene (PE) plain roofing tiles for liquids conveyance on high slope surfaces, such as roads and railways with embankments or landfill sites. They are available in green colour, provided with reinforcement lamellas on the outer surfaces which are useful for the improvement of the fixing in the laying ground; with double cylindrical pin connection that allows the height variation ± 20° and the thermal expansions absorption; with the predisposition to ground fixing through drift piling or steel cable.

MAIN FEATURES

Lightweight
Easy, fast and safe to handle and manual installation
Built-in interlocking connection system between the elements
High chemical and abrasion resistance
Recyclable

Drainage channels in PE for road surface run-off
Drainage channels in PE for road surface run-off

YOU-TUBE

CENTRALDRENI HDPE solid wall slotted pipes for drainage

2024-07-01T15:30:13+02:00

CENTRALDRENI HDPE solid wall slotted pipes for drainage

BRIEF DESCRIPTION

Solid wall pipes made of high density polyethylene (HDPE) with a smooth inner and outer surface, available in black colourThey are provided with transverse slots of different sizes and layout and are used for the construction of underground drainage systems for liquids, landfill leachate and biogas collection. The diameters (OD) range goes from 75 up to 400 mm and pipes are delivered in bars. Upon request, they can be certified PSV (Plastica Seconda Vita – Second Life Plastic) when are made with HDPE obtained from separate waste collection to guarantee that the products can be traced back so being part of circular economy model.

MAIN FEATURES

Wide range of slots layout
Long-range bending
Plastic behaviour in unstable situations
Wide range of fittings and special pieces, standard and customized
Inert to stray currents
High abrasion and chemical resistance (ISO/TR 10358)
High shock absorption capacity
Recyclable

YOU-TUBE

CERTIFICATES:

Solid wall PE 100 pipes for pressurized water networks

2024-07-02T09:26:18+02:00

Solid wall PE 100 pipes for pressurized water networks

BRIEF DESCRIPTION

Solid wall pipes made of PE 100 (MRS 10 MPa – σS 8 MPa) with a smooth inner and outer surface, available in black colour (with or without external coextruded coloured stripes) or completely blue.
Diameters (OD) go from 20 up to 1200 mm. Pipes can be delivered in coils or bars.

MAIN FEATURES

100% permanent and watertight seal
Pliability
Wide range of dimension and performance choice
Very high chemical, electrical and biological resistance
High abrasion resistance
Low elasticity modulus
Plastic behavior in unstable situations
Reduced number of joints
System Homogeneity
Lightness
More resistant to chemical agents compared to other materials
Security
Savings
Recyclable

YOU-TUBE

PE INSPECTION MANHOLES MADE WITH SMOOTH SOLID WALL PIPES BODY

2022-02-15T15:02:26+01:00

PE INSPECTION MANHOLES MADE WITH SMOOTH SOLID WALL PIPES BODY

BRIEF DESCRIPTION

Circular manhole, made of multiple polyethylene (PE) modules, with bases consisting of flat plates (single or double), extension body consisting of solid wall pipe with smooth extruded surface of various thicknesses, and reductions to the manholes provided with socket in order to accommodate the connection of the extension body made of corrugated pipe, or made up of flat plates (with or without metallic structural reinforcement) and connection of the element of manhole reduction. Modules are available in black colour with a diameters range that goes from DN 630 up to 2500 mm, in order to allow the inspection of underground pipes which are accessible with DN/ID ≥ 800 mm. They allow the creation of in-line manholes, vertex manholes, intersection manholes and backdrop manholes. Modules are preassembled at the factory before the shipment through an extrusion connection made by qualified personnel. The manholes used for inspections are provided with stairs (on request). Suitable for connecting all plastic pipes, with structured or solid walls, but also the stoneware ones. Suitable for applications in areas subject to heavy traffic, combined with an uptight plate for force distribution and in case of groundwater. Wide range of customised shapes.

MAIN FEATURES

Monolithic quality (high reliability in case of groundwater)
Structural reliability
Lightweight
Easy and quick to install
Plastic behaviour in unstable situations
Wide range of solutions (sizing optimization)
Versatility
Inert to stray currents
High chemical resistance (ISO/TR 10358)
High abrasion resistance
High shock absorption capacity
Recyclable

YOU-TUBE

CERTIFICATES:
